First Iteration of DDSP-Piano
In this page, you can find audio samples of performances synthesized by our DDSP-based piano synthesizer.
Overview
Full architecture of the proposed piano sound synthesizer. The blue boxes represent the trained modules for the control of the synthesizers. The differentiable synthesizers from DDSP are represented by yellow boxes (Additive, Filtered Noise and Reverberation).
Synthesis examples
The MIDI performances are taken from the test set of the MAESTRO dataset.
Benchmark systems include:
- Original recording: the real audio recording of the performance.
- Fluidsynth: a concatenative sampling-based algorithm.
- Pianoteq: a physical-modeling-based synthesis software.
- TTS: a neural-based synthesis model inpired by text-to-speech techniques.
Different configurations of our DDSP-based model are also compared:
- Default: the default configuration illustrated previously.
- No Fine-tuning: without applying the fine-tuned parameters of the detuner and inharmonicity sub-models.
- Deep-Inharmonicity: replacing the explicit inharmonicity sub-model by a deep neural network.
- Reduced-Context: remove the polyphonic information from the context computation.
- 2009-only: model trained solely on the 2009 piano model.
A. Scriabin - Etude, Op.42 No.4
Piano year: 2009
| Model | Audio sample |
|---|---|
| Original recording | |
| Fluidsynth | |
| Pianoteq | |
| TTS | |
| Default | |
| No Fine-tuning | |
| Deep-Inharmonicity | |
| Reduced-Context | |
| 2009-only |
C. Debussy - Etude, No.7 “Study in Chromatic Steps”
Piano year: 2004
| Model | Audio sample |
|---|---|
| Original recording | |
| Fluidsynth | |
| Pianoteq | |
| TTS | |
| Default | |
| No Fine-tuning | |
| Deep-Inharmonicity | |
| Reduced-Context | |
| 2009-only |
D. Scarlatti - Sonata in D Major, K.118
Piano year: 2014
| Model | Audio sample |
|---|---|
| Original recording | |
| Fluidsynth | |
| Pianoteq | |
| TTS | |
| Default | |
| No Fine-tuning | |
| Deep-Inharmonicity | |
| Reduced-Context | |
| 2009-only |
F. Mendelssohn - Fantasy in F-sharp minor, Op.28
Piano year: 2017
| Model | Audio sample |
|---|---|
| Original recording | |
| Fluidsynth | |
| Pianoteq | |
| TTS | |
| Default | |
| No Fine-tuning | |
| Deep-Inharmonicity | |
| Reduced-Context | |
| 2009-only |
F. Liszt - Hungarian Rhapsody No.9 in E-Flat Major, S.244
Piano year: 2015
| Model | Audio sample |
|---|---|
| Original recording | |
| Fluidsynth | |
| Pianoteq | |
| TTS | |
| Default | |
| No Fine-tuning | |
| Deep-Inharmonicity | |
| Reduced-Context | |
| 2009-only |
F. Schubert - Impromptu Op.142 No.4, in F minor, D935
Piano year: 2011
| Model | Audio sample |
|---|---|
| Original recording | |
| Fluidsynth | |
| Pianoteq | |
| TTS | |
| Default | |
| No Fine-tuning | |
| Deep-Inharmonicity | |
| Reduced-Context | |
| 2009-only |
F. Chopin - Nocturne in B Major, Op.9 No.3
Piano year: 2009
| Model | Audio sample |
|---|---|
| Original recording | |
| Fluidsynth | |
| Pianoteq | |
| TTS | |
| Default | |
| No Fine-tuning | |
| Deep-Inharmonicity | |
| Reduced-Context | |
| 2009-only |
J.S. Bach - Prelude & Fugue in G-Sharp Minor, WTC I BWV.863
Piano year: 2013
| Model | Audio sample |
|---|---|
| Original recording | |
| Fluidsynth | |
| Pianoteq | |
| TTS | |
| Default | |
| No Fine-tuning | |
| Deep-Inharmonicity | |
| Reduced-Context | |
| 2009-only |
L. van Beethoven - Rondo a Capriccioso “Rage over a Lost Penny”, Op.129
Piano year: 2018
| Model | Audio sample |
|---|---|
| Original recording | |
| Fluidsynth | |
| Pianoteq | |
| TTS | |
| Default | |
| No Fine-tuning | |
| Deep-Inharmonicity | |
| Reduced-Context | |
| 2009-only |
S. Rachmaninoff, Etudes-Tableaux, Op.39 No.9
Piano year: 2006
| Model | Audio sample |
|---|---|
| Original recording | |
| Fluidsynth | |
| Pianoteq | |
| TTS | |
| Default | |
| No Fine-tuning | |
| Deep-Inharmonicity | |
| Reduced-Context | |
| 2009-only |
W.A. Mozart - Sonata in B-Flat Major (1st movement), K333
Piano year: 2008
| Model | Audio sample |
|---|---|
| Original recording | |
| Fluidsynth | |
| Pianoteq | |
| TTS | |
| Default | |
| No Fine-tuning | |
| Deep-Inharmonicity | |
| Reduced-Context | |
| 2009-only |
Bonus: Disentanglement of sound components

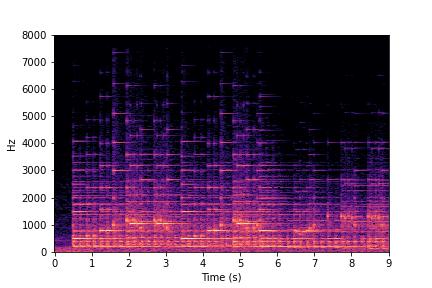

As in the original DDSP experiments, the audio output of the differentiable DSP layers can be heard. The audio without reverb can be extracted before applying the reverberation layer:
| Wet audio | Reverb removed |
|---|---|
 |
 |

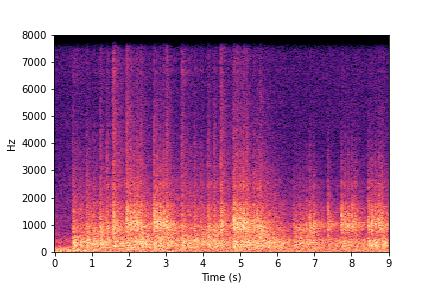

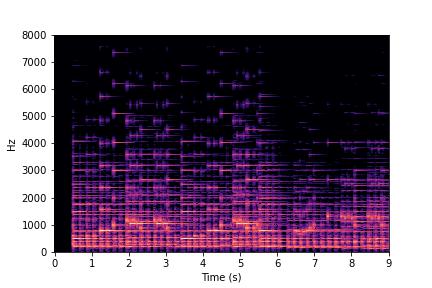

Audio can also be decomposed into its pure harmonic components and the residual noise, by only listening to the outputs of the additive and filtered noise synthesizers:
| Additive Synth | Filtered Noise Synth |
|---|---|
 |
 |
The “initial impact” issue
In the manuscript, an “initial impact” issue was reported, where listeners could hear a noise at the beginning of the excerpts synthesized by DDSP-Piano, as if the piano soundboard was excited even before inputting any control.
The presented audio excerpts in this website have this issue removed, by means of audio fade-ins or RNN warm-up during inference time. Otherwise, it would sound like the following:
Bonus #2: An underfitted model
We slightly investigated whether the model is able to reproduce a piano with reduced training data or not.
A DDSP-Piano model was trained on a performance of Debussy’s “Images I: Reflets dans l’Eau” available in the training set of MAESTRO, which amounts for 15 minutes of MIDI-audio training data.
The resynthesis gives:
| Original recording | DDSP-Piano |
|---|---|
Clearly, the model underfits and fails to reproduce the target piano model, but it yields interesting tones that may find artistic usages…
Bonus #3: other polyphonic instruments
The polyphonic conditioning proposed for DDSP-Piano extends the DDSP approach to handle polyphonic MIDI inputs and audio outputs, not just for the piano instrument.
Here, the training setting of the Mel2Mel model has been reproduced, in order to train a DDSP-Piano model on other instruments:
- Ground-truth MIDI data are taken from the MUS subset of the MAPS dataset.
- Ground-truth audio data are synthesized by using Fluidsynth soundfont and its default multi-instrument soundfont.
- The inharmonicity module of DDSP-Piano is set to produce only pure-harmonics of the fundamental frequency.
| Instrument | Scriabin - Op.42 No.4 | Rachmaninoff, Op.39 No.9 |
|---|---|---|
| Acoustic Guitar | ||
| Church Organ | ||
| Electric Piano | ||
| Grand Piano | ||
| Orchestral Harp | ||
| Pizzicato Strings | ||
| String Ensemble | ||
| Synth Lead | ||
| Trumpet | ||
| Vibraphone |
